Right Angle Check Valve — Suit for all refrigerants and ammonia
Technical Parameters:
* Design pressure: 6.4MPa
* Test Pressure: 6.0MPa
* Seal Test Pressure: 0.2MPa
* Opening Pressure: 0.01MPa
* Applicable Temperature: -46℃ ~ +150℃
* Applicable Media: R22、R507、R407C、R404A、R134a、R410A、R717、ammonia and other refrigerants and frozen oil.
|

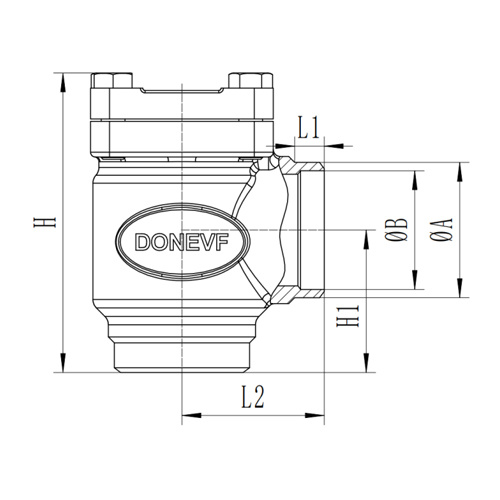

No. |
Type |
Nominal Diameter |
ΦA |
ΦB |
L1 |
L2 |
H |
H1 |
|
1 |
SCV-20Z-00 |
DN20 |
Φ27 |
Φ19 |
12 |
45 |
103.5 |
45 |
|
2 |
SCV-25Z-00 |
DN25 |
Φ34 |
Φ25 |
12 |
45 |
103.5 |
45 |
|
3 |
SCV-32Z-00 |
DN32 |
Φ38 |
Φ32 |
12 |
50 |
108 |
50 |
|
4 |
SCV-40Z-00 |
DN40 |
Φ48.3 |
Φ40 |
14 |
55 |
134.5 |
55 |
|
5 |
SCV-50Z-00 |
DN50 |
Φ57 |
Φ50 |
12.5 |
60 |
126 |
60 |
|
6 |
SCV-65Z-00 |
DN65 |
Φ76 |
Φ65 |
15.5 |
70 |
149 |
70 |
|
7 |
SCV-80Z-00 |
DN80 |
Φ89 |
Φ80 |
16.5 |
90 |
190 |
90 |
|
8 |
SCV-100Z-00 |
DN100 |
Φ108 |
Φ100 |
16 |
106 |
219 |
106 |
|
9 |
SCV-125Z-00 |
DN125 |
Φ133 |
Φ125 |
20 |
127 |
265 |
127 |
