Direct Flow Stop Check Valve — Suit for all refrigerants and ammonia
Technical Parameters:
* Design pressure: 6.4MPa
* Test Pressure: 6.0MPa
* Seal Test Pressure: 0.2MPa
* Opening Pressure: 0.01MPa
* Applicable Temperature: -46℃ ~ +150℃
* Applicable Media: R22、R507、R407C、R404A、R134a、R410A、R717、ammonia and other refrigerants and frozen oil.
|

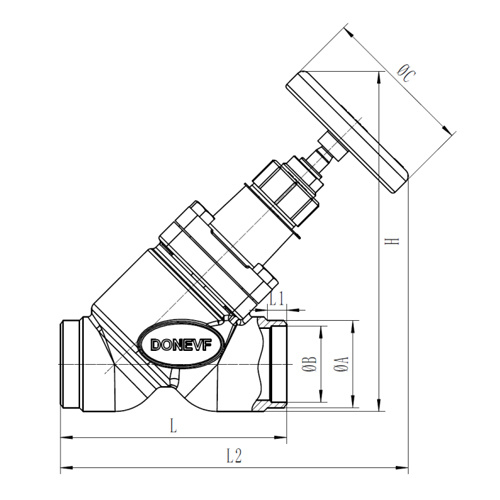

No. |
Type |
Nominal Diameter |
ΦA |
ΦB |
L1 |
L |
L2 |
H |
ΦC |
|
1 |
GCV-20Y-00 |
DN20 |
Φ27 |
Φ19 |
12 |
120 |
176 |
163 |
Φ80 |
|
2 |
GCV-25Y-00 |
DN25 |
Φ34 |
Φ25 |
12 |
120 |
176 |
163 |
Φ80 |
|
3 |
GCV-32Y-00 |
DN32 |
Φ38 |
Φ32 |
12 |
128 |
184 |
171 |
Φ80 |
|
4 |
GCV-40Y-00 |
DN40 |
Φ48.3 |
Φ40 |
14 |
155 |
224 |
206 |
Φ80 |
|
5 |
GCV-50Y-00 |
DN50 |
Φ57 |
Φ50 |
12.5 |
148 |
227 |
223 |
Φ100 |
|
6 |
GCV-65Y-00 |
DN65 |
Φ76 |
Φ65 |
15.5 |
176 |
268 |
270 |
Φ140 |
|
7 |
GCV-80Y-00 |
DN80 |
Φ89 |
Φ80 |
16.5 |
216 |
303 |
303 |
Φ140 |
|
8 |
GCV-100Y-00 |
DN100 |
Φ108 |
Φ100 |
16 |
264 |
366 |
368 |
Φ200 |
|
9 |
GCV-125Y-00 |
DN125 |
Φ133 |
Φ125 |
20 |
320 |
440 |
443 |
Φ220 |
