AICERY focuses on providing refrigeration system unit with over 20 years of experience
HANBELL
Product category:
Screw compressor condensing unit
Product description:
Key word:
condensing unit
air-cooled
water-cooled
evaporative
parallel condensing unit
screw
BITZER
FRASCOLD
HANBELL
REFCOMP
FUSHENG
Tel:
E-mail:
HANBELL
Screw Compressor Refrigeration Units - Low Temperature
| Unit Model | Com.Model ( Hanbell) |
Com. Quantity | Condensing Temp.(℃) | Cooling Capacity Qo[Kw] | Input Power Pe[Kw] | Liquid Receiver ( L) |
Supply Pipe (mm) |
Suction Pipe (mm) |
Discharge Pipe (mm) |
Oil outlet (mm) |

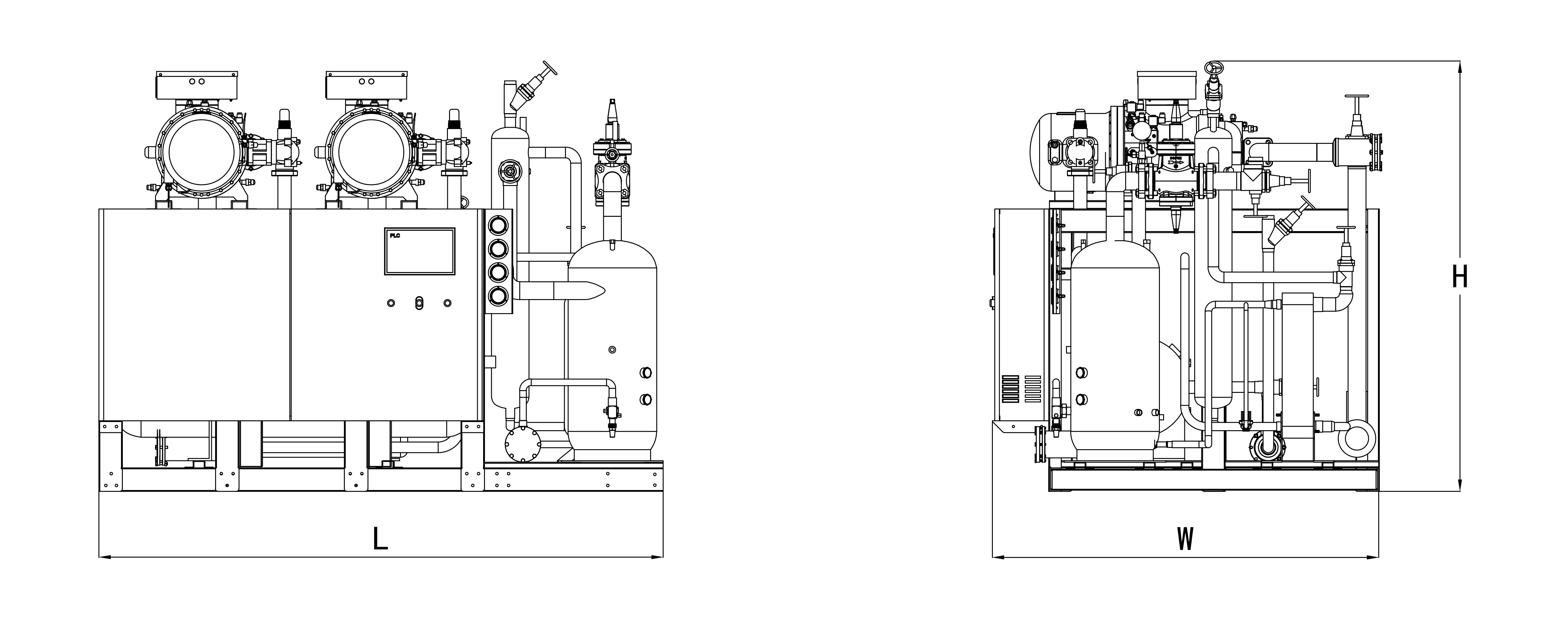

Dimension(mm) (L×W×H) |
||||||||
| Evaporation Temp.(℃) | |||||||||||||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Qo | Pe | Qo | Pe | Qo | Pe | Qo | Pe | Qo | Pe | ||||||||||
| EPL-HH-30L | LBⅡ-100-PLUS（30HP） | 1 | 35 | 50.9 | 22.7 | 41.2 | 21.6 | 32.8 | 20.8 | 25.9 | 19.8 | 20.0 | 18.4 | 80 | Φ28 | Φ57 | Φ45 | Φ16 | 1800×1400×2100 |
| 40 | 47.9 | 24.6 | 40.0 | 24.2 | 31.8 | 23.3 | 24.9 | 21.6 | 19.0 | 20.1 | |||||||||
| 45 | 46.0 | 27.4 | 37.6 | 26.5 | 30.1 | 25.1 | 24.0 | 23.7 | 18.2 | 22.0 | |||||||||
| EPL-BHH2-60L | 2 | 35 | 101.8 | 45.4 | 82.4 | 43.2 | 65.6 | 41.6 | 51.8 | 39.6 | 40.0 | 36.8 | 150 | Φ35 | Φ89 | Φ57 | Φ22 | 2400×1800×2200 | |
| 40 | 95.8 | 49.2 | 80.0 | 48.4 | 63.6 | 46.6 | 49.8 | 43.2 | 38.0 | 40.2 | |||||||||
| 45 | 92.0 | 54.8 | 75.2 | 53.0 | 60.2 | 50.2 | 48.0 | 47.4 | 36.4 | 44.0 | |||||||||
| EPL-BHH3-90L | 3 | 35 | 152.7 | 68.1 | 123.6 | 64.8 | 98.4 | 62.4 | 77.7 | 59.4 | 60.0 | 55.2 | 200 | Φ42 | Φ108×2 | Φ76 | Φ28 | 3100×1800×2200 | |
| 40 | 143.7 | 73.8 | 120.0 | 72.6 | 95.4 | 69.9 | 74.7 | 64.8 | 57.0 | 60.3 | |||||||||
| 45 | 138.0 | 82.2 | 112.8 | 79.5 | 90.3 | 75.3 | 72.0 | 71.1 | 54.6 | 66.0 | |||||||||
| EPL-BHH4-120L | 4 | 35 | 203.6 | 90.8 | 164.8 | 86.4 | 131.2 | 83.2 | 103.6 | 79.2 | 80.0 | 73.6 | 250 | Φ42 | Φ133×2 | Φ76 | Φ28 | 3400×2000×2200 | |
| 40 | 191.6 | 98.4 | 160.0 | 96.8 | 127.2 | 93.2 | 99.6 | 86.4 | 76.0 | 80.4 | |||||||||
| 45 | 184.0 | 109.6 | 150.4 | 106.0 | 120.4 | 100.4 | 96.0 | 94.8 | 72.8 | 88.0 | |||||||||
| EPL-HH-40L | LBⅡ-140-PLUS (40HP) | 1 | 35 | 72.6 | 27.0 | 58.9 | 29.8 | 47.3 | 28.6 | 37.3 | 27.8 | 28.7 | 25.8 | 100 | Φ28 | Φ57 | Φ45 | Φ16 | 2200×1450×2150 |
| 40 | 70.6 | 34.7 | 57.1 | 33.3 | 45.4 | 31.9 | 35.6 | 30.2 | 27.3 | 28.0 | |||||||||
| 45 | 66.7 | 38.1 | 55.4 | 37.3 | 44.0 | 36.0 | 34.2 | 33.0 | 25.9 | 30.5 | |||||||||
| EPL-BHH2-80L | 2 | 35 | 145.2 | 54.0 | 117.8 | 59.6 | 94.6 | 57.2 | 74.6 | 55.6 | 57.4 | 51.6 | 200 | Φ42 | Φ89 | Φ76 | Φ28 | 2400×1800×2200 | |
| 40 | 141.2 | 69.4 | 114.2 | 66.6 | 90.8 | 63.8 | 71.2 | 60.4 | 54.6 | 56.0 | |||||||||
| 45 | 133.4 | 76.2 | 110.8 | 74.6 | 88.0 | 72.0 | 68.4 | 66.0 | 51.8 | 61.0 | |||||||||
| EPL-BHH3-120L | 3 | 35 | 217.8 | 81.0 | 176.7 | 89.4 | 141.9 | 85.8 | 111.9 | 83.4 | 86.1 | 77.4 | 250 | Φ42 | Φ108×2 | Φ76 | Φ28 | 3100×1800×2200 | |
| 40 | 211.8 | 104.1 | 171.3 | 99.9 | 136.2 | 95.7 | 106.8 | 90.6 | 81.9 | 84.0 | |||||||||
| 45 | 200.1 | 114.3 | 166.2 | 111.9 | 132.0 | 108.0 | 102.6 | 99.0 | 77.7 | 91.5 | |||||||||
| EPL-BHH4-160L | 4 | 35 | 290.4 | 108.0 | 235.6 | 119.2 | 189.2 | 114.4 | 149.2 | 111.2 | 114.8 | 103.2 | 300 | Φ57 | Φ133×2 | Φ89 | Φ35 | 3400×2000×2200 | |
| 40 | 282.4 | 138.8 | 228.4 | 133.2 | 181.6 | 127.6 | 142.4 | 120.8 | 109.2 | 112.0 | |||||||||
| 45 | 266.8 | 152.4 | 221.6 | 149.2 | 176.0 | 144.0 | 136.8 | 132.0 | 103.6 | 122.0 | |||||||||
| EPL-HH-55L | LBⅡ-180-PLUS (55HP) | 1 | 35 | 86.8 | 36.7 | 70.2 | 35.0 | 55.9 | 33.5 | 44.1 | 32.6 | 34.1 | 30.4 | 150 | Φ28 | Φ57 | Φ45 | Φ22 | 2200×1450×2150 |
| 40 | 81.8 | 39.9 | 68.2 | 39.2 | 54.3 | 37.7 | 42.4 | 35.6 | 32.4 | 33.1 | |||||||||
| 45 | 78.6 | 44.4 | 64.1 | 43.0 | 52.6 | 42.4 | 40.9 | 39.1 | 30.9 | 36.2 | |||||||||
| EPL-BHH2-110L | 2 | 35 | 173.6 | 73.4 | 140.4 | 70.0 | 111.8 | 67.0 | 88.2 | 65.2 | 68.2 | 60.8 | 200 | Φ42 | Φ89 | Φ76 | Φ28 | 2400×1800×2200 | |
| 40 | 163.6 | 79.8 | 136.4 | 78.4 | 108.6 | 75.4 | 84.8 | 71.2 | 64.8 | 66.2 | |||||||||
| 45 | 157.2 | 88.8 | 128.2 | 86.0 | 105.2 | 84.8 | 81.8 | 78.2 | 61.8 | 72.4 | |||||||||
| EPL-BHH3-165L | 3 | 35 | 260.4 | 110.1 | 210.6 | 105.0 | 167.7 | 100.5 | 132.3 | 97.8 | 102.3 | 91.2 | 250 | Φ42 | Φ108×2 | Φ76 | Φ28 | 3100×1800×2200 | |
| 40 | 245.4 | 119.7 | 204.6 | 117.6 | 162.9 | 113.1 | 127.2 | 106.8 | 97.2 | 99.3 | |||||||||
| 45 | 235.8 | 133.2 | 192.3 | 129.0 | 157.8 | 127.2 | 122.7 | 117.3 | 92.7 | 108.6 | |||||||||
| EPL-BHH4-220L | 4 | 35 | 347.2 | 146.8 | 280.8 | 140.0 | 223.6 | 134.0 | 176.4 | 130.4 | 136.4 | 121.6 | 400 | Φ57 | Φ133×2 | Φ89 | Φ35 | 4100×2300×2300 | |
| 40 | 327.2 | 159.6 | 272.8 | 156.8 | 217.2 | 150.8 | 169.6 | 142.4 | 129.6 | 132.4 | |||||||||
| 45 | 314.4 | 177.6 | 256.4 | 172.0 | 210.4 | 169.6 | 163.6 | 156.4 | 123.6 | 144.8 | |||||||||
| EPL-HH-60L | LBⅡ-200-PLUS (60HP) | 1 | 35 | 100.3 | 42.1 | 81.2 | 40.1 | 64.6 | 38.5 | 51.0 | 37.3 | 39.4 | 35.0 | 150 | Φ35 | Φ76 | Φ57 | Φ22 | 2200×1450×2150 |
| 40 | 94.6 | 45.7 | 78.8 | 44.9 | 62.7 | 43.1 | 49.0 | 41.0 | 37.4 | 38.1 | |||||||||
| 45 | 90.8 | 50.9 | 74.1 | 49.3 | 60.7 | 48.6 | 47.2 | 45.0 | 35.8 | 41.6 | |||||||||
| EPL-BHH2-120L | 2 | 35 | 200.6 | 84.2 | 162.4 | 80.2 | 129.2 | 77.0 | 102.0 | 74.6 | 78.8 | 70.0 | 250 | Φ42 | Φ108 | Φ76 | Φ28 | 2400×1800×2200 | |
| 40 | 189.2 | 91.4 | 157.6 | 89.8 | 125.4 | 86.2 | 98.0 | 82.0 | 74.8 | 76.2 | |||||||||
| 45 | 181.6 | 101.8 | 148.2 | 98.6 | 121.4 | 97.2 | 94.4 | 90.0 | 71.6 | 83.2 | |||||||||
| EPL-BHH3-180L | 3 | 35 | 300.9 | 126.3 | 243.6 | 120.3 | 193.8 | 115.5 | 153.0 | 111.9 | 118.2 | 105.0 | 300 | Φ57 | Φ133×2 | Φ89 | Φ35 | 3100×1800×2200 | |
| 40 | 283.8 | 137.1 | 236.4 | 134.7 | 188.1 | 129.3 | 147.0 | 123.0 | 112.2 | 114.3 | |||||||||
| 45 | 272.4 | 152.7 | 222.3 | 147.9 | 182.1 | 145.8 | 141.6 | 135.0 | 107.4 | 124.8 | |||||||||
| EPL-BHH4-240L | 4 | 35 | 401.2 | 168.4 | 324.8 | 160.4 | 258.4 | 154.0 | 204.0 | 149.2 | 157.6 | 140.0 | 400 | Φ57 | Φ159×2 | Φ89 | Φ35 | 4100×2300×2300 | |
| 40 | 378.4 | 182.8 | 315.2 | 179.6 | 250.8 | 172.4 | 196.0 | 164.0 | 149.6 | 152.4 | |||||||||
| 45 | 363.2 | 203.6 | 296.4 | 197.2 | 242.8 | 194.4 | 188.8 | 180.0 | 143.2 | 166.4 | |||||||||
| EPL-HH-70L | LBⅡ-230-PLUS (70HP) | 1 | 35 | 111.5 | 46.2 | 93.7 | 45.2 | 74.6 | 43.4 | 58.4 | 42.0 | 45.1 | 39.6 | 150 | Φ35 | Φ76 | Φ57 | Φ22 | 2200×1450×2150 |
| 40 | 107.6 | 51.1 | 88.1 | 49.5 | 72.3 | 48.7 | 56.5 | 47.3 | 43.1 | 43.2 | |||||||||
| 45 | 103.5 | 56.8 | 84.5 | 55.0 | 67.8 | 53.8 | 53.2 | 50.3 | 41.3 | 47.3 | |||||||||
| EPL-BHH2-140L | 2 | 35 | 223.0 | 92.4 | 187.4 | 90.4 | 149.2 | 86.8 | 116.8 | 84.0 | 90.2 | 79.2 | 250 | Φ42 | Φ108 | Φ76 | Φ28 | 2400×1800×2200 | |
| 40 | 215.2 | 102.2 | 176.2 | 99.0 | 144.6 | 97.4 | 113.0 | 94.6 | 86.2 | 86.4 | |||||||||
| 45 | 207.0 | 113.6 | 169.0 | 110.0 | 135.6 | 107.6 | 106.4 | 100.6 | 82.6 | 94.6 | |||||||||
| EPL-BHH3-210L | 3 | 35 | 334.5 | 138.6 | 281.1 | 135.6 | 223.8 | 130.2 | 175.2 | 126.0 | 135.3 | 118.8 | 300 | Φ57 | Φ133×2 | Φ89 | Φ35 | 3100×1800×2200 | |
| 40 | 322.8 | 153.3 | 264.3 | 148.5 | 216.9 | 146.1 | 169.5 | 141.9 | 129.3 | 129.6 | |||||||||
| 45 | 310.5 | 170.4 | 253.5 | 165.0 | 203.4 | 161.4 | 159.6 | 150.9 | 123.9 | 141.9 | |||||||||
| EPL-BHH4-280L | 4 | 35 | 446.0 | 184.8 | 374.8 | 180.8 | 298.4 | 173.6 | 233.6 | 168.0 | 180.4 | 158.4 | 500 | Φ76 | Φ159×2 | Φ89 | Φ35 | 4100×2300×2300 | |
| 40 | 430.4 | 204.4 | 352.4 | 198.0 | 289.2 | 194.8 | 226.0 | 189.2 | 172.4 | 172.8 | |||||||||
| 45 | 414.0 | 227.2 | 338.0 | 220.0 | 271.2 | 215.2 | 212.8 | 201.2 | 165.2 | 189.2 | |||||||||
| EPL-HH-75L | LBⅡ-250-PLUS (75HP) | 1 | 35 | 133.6 | 52.9 | 109.7 | 51.1 | 90.0 | 49.9 | 70.4 | 48.3 | 54.2 | 46.3 | 200 | Φ35 | Φ76 | Φ57 | Φ22 | 2400×1700×2150 |
| 40 | 128.9 | 58.5 | 105.6 | 56.8 | 85.0 | 55.1 | 68.0 | 54.4 | 51.9 | 50.6 | |||||||||
| 45 | 124.2 | 65.2 | 101.4 | 63.2 | 81.4 | 61.7 | 63.9 | 58.7 | 49.7 | 55.3 | |||||||||
| EPL-BHH2-150L | 2 | 35 | 267.2 | 105.8 | 219.4 | 102.2 | 180.0 | 99.8 | 140.8 | 96.6 | 108.4 | 92.6 | 250 | Φ57 | Φ108 | Φ76 | Φ28 | 2600×2000×2200 | |
| 40 | 257.8 | 117.0 | 211.2 | 113.6 | 170.0 | 110.2 | 136.0 | 108.8 | 103.8 | 101.2 | |||||||||
| 45 | 248.4 | 130.4 | 202.8 | 126.4 | 162.8 | 123.4 | 127.8 | 117.4 | 99.4 | 110.6 | |||||||||
| EPL-BHH3-225L | 3 | 35 | 400.8 | 158.7 | 329.1 | 153.3 | 270.0 | 149.7 | 211.2 | 144.9 | 162.6 | 138.9 | 350 | Φ57 | Φ133×2 | Φ89 | Φ35 | 3400×2000×2300 | |
| 40 | 386.7 | 175.5 | 316.8 | 170.4 | 255.0 | 165.3 | 204.0 | 163.2 | 155.7 | 151.8 | |||||||||
| 45 | 372.6 | 195.6 | 304.2 | 189.6 | 244.2 | 185.1 | 191.7 | 176.1 | 149.1 | 165.9 | |||||||||
| EPL-BHH4-300L | 4 | 35 | 534.4 | 211.6 | 438.8 | 204.4 | 360.0 | 199.6 | 281.6 | 193.2 | 216.8 | 185.2 | 500 | Φ76 | Φ159×2 | Φ108 | Φ42 | 4100×2300×2300 | |
| 40 | 515.6 | 234.0 | 422.4 | 227.2 | 340.0 | 220.4 | 272.0 | 217.6 | 207.6 | 202.4 | |||||||||
| 45 | 496.8 | 260.8 | 405.6 | 252.8 | 325.6 | 246.8 | 255.6 | 234.8 | 198.8 | 221.2 | |||||||||
| EPL-HH-85L | LBⅡ-280-PLUS (85HP) | 1 | 35 | 152.6 | 57.0 | 125.2 | 55.0 | 102.7 | 53.7 | 80.4 | 51.9 | 61.9 | 50.8 | 200 | Φ42 | Φ89 | Φ76 | Φ28 | 2400×1700×2150 |
| 40 | 147.2 | 63.0 | 120.6 | 61.1 | 97.0 | 59.2 | 77.7 | 58.4 | 59.2 | 55.5 | |||||||||
| 45 | 141.8 | 70.2 | 115.8 | 67.9 | 92.9 | 66.2 | 72.9 | 64.9 | 56.8 | 60.7 | |||||||||
| EPL-BHH2-170L | 2 | 35 | 305.2 | 114.0 | 250.4 | 110.0 | 205.4 | 107.4 | 160.8 | 103.8 | 123.8 | 101.6 | 300 | Φ57 | Φ108 | Φ89 | Φ35 | 2600×2000×2200 | |
| 40 | 294.4 | 126.0 | 241.2 | 122.2 | 194.0 | 118.4 | 155.4 | 116.8 | 118.4 | 111.0 | |||||||||
| 45 | 283.6 | 140.4 | 231.6 | 135.8 | 185.8 | 132.4 | 145.8 | 129.8 | 113.6 | 121.4 | |||||||||
| EPL-BHH3-255L | 3 | 35 | 457.8 | 171.0 | 375.6 | 165.0 | 308.1 | 161.1 | 241.2 | 155.7 | 185.7 | 152.4 | 500 | Φ76 | Φ133×2 | Φ89 | Φ35 | 3400×2000×2250 | |
| 40 | 441.6 | 189.0 | 361.8 | 183.3 | 291.0 | 177.6 | 233.1 | 175.2 | 177.6 | 166.5 | |||||||||
| 45 | 425.4 | 210.6 | 347.4 | 203.7 | 278.7 | 198.6 | 218.7 | 194.7 | 170.4 | 182.1 | |||||||||
| EPL-BHH4-340L | 4 | 35 | 610.4 | 228.0 | 500.8 | 220.0 | 410.8 | 214.8 | 321.6 | 207.6 | 247.6 | 203.2 | 600 | Φ89 | Φ159×2 | Φ108 | Φ42 | 4600×2300×2500 | |
| 40 | 588.8 | 252.0 | 482.4 | 244.4 | 388.0 | 236.8 | 310.8 | 233.6 | 236.8 | 222.0 | |||||||||
| 45 | 567.2 | 280.8 | 463.2 | 271.6 | 371.6 | 264.8 | 291.6 | 259.6 | 227.2 | 242.8 | |||||||||
| EPL-HH-100L | LBⅡ-360-PLUS (100HP) | 1 | 35 | 191.1 | 67.6 | 156.9 | 65.2 | 128.8 | 63.7 | 100.8 | 61.5 | 77.6 | 60.0 | 200 | Φ42 | Φ89 | Φ76 | Φ28 | 2400×1700×2150 |
| 40 | 184.5 | 74.6 | 151.1 | 72.4 | 121.6 | 70.1 | 97.4 | 69.1 | 74.3 | 67.6 | |||||||||
| 45 | 177.7 | 83.2 | 145.0 | 80.4 | 116.4 | 78.3 | 91.4 | 76.7 | 71.2 | 73.4 | |||||||||
| EPL-BHH2-200L | 2 | 35 | 382.2 | 135.2 | 313.8 | 130.4 | 257.6 | 127.4 | 201.6 | 123.0 | 155.2 | 120.0 | 300 | Φ57 | Φ108 | Φ89 | Φ35 | 2600×2000×2200 | |
| 40 | 369.0 | 149.2 | 302.2 | 144.8 | 243.2 | 140.2 | 194.8 | 138.2 | 148.6 | 135.2 | |||||||||
| 45 | 355.4 | 166.4 | 290.0 | 160.8 | 232.8 | 156.6 | 182.8 | 153.4 | 142.4 | 146.8 | |||||||||
| EPL-BHH3-300L | 3 | 35 | 573.3 | 202.8 | 470.7 | 195.6 | 386.4 | 191.1 | 302.4 | 184.5 | 232.8 | 180.0 | 500 | Φ76 | Φ133×2 | Φ108 | Φ42 | 3400×2000×2300 | |
| 40 | 553.5 | 223.8 | 453.3 | 217.2 | 364.8 | 210.3 | 292.2 | 207.3 | 222.9 | 202.8 | |||||||||
| 45 | 533.1 | 249.6 | 435.0 | 241.2 | 349.2 | 234.9 | 274.2 | 230.1 | 213.6 | 220.2 | |||||||||
| EPL-BHH4-400L | 4 | 35 | 764.4 | 270.4 | 627.6 | 260.8 | 515.2 | 254.8 | 403.2 | 246.0 | 310.4 | 240.0 | 600 | Φ89 | Φ159×2 | Φ133 | Φ57 | 4600×2300×2500 | |
| 40 | 738.0 | 298.4 | 604.4 | 289.6 | 486.4 | 280.4 | 389.6 | 276.4 | 297.2 | 270.4 | |||||||||
| 45 | 710.8 | 332.8 | 580.0 | 321.6 | 465.6 | 313.2 | 365.6 | 306.8 | 284.8 | 293.6 | |||||||||
| EPL-HH-125L | LBⅡ-410-PLUS (125HP) | 1 | 35 | 216.7 | 75.7 | 178.4 | 73.2 | 144.5 | 71.0 | 114.8 | 69.4 | 90.6 | 68.9 | 250 | Φ42 | Φ108 | Φ76 | Φ28 | 2400×1700×2150 |
| 40 | 208.9 | 83.6 | 172.5 | 81.5 | 139.0 | 79.1 | 110.0 | 77.7 | 86.9 | 77.8 | |||||||||
| 45 | 201.0 | 92.9 | 166.0 | 90.7 | 133.5 | 88.7 | 105.0 | 87.3 | 80.5 | 83.2 | |||||||||
| EPL-BHH2-250L | 2 | 35 | 433.4 | 151.4 | 356.8 | 146.4 | 289.0 | 142.0 | 229.6 | 138.8 | 181.2 | 137.8 | 400 | Φ57 | Φ133 | Φ89 | Φ35 | 2600×2000×2200 | |
| 40 | 417.8 | 167.2 | 345.0 | 163.0 | 278.0 | 158.2 | 220.0 | 155.4 | 173.8 | 155.6 | |||||||||
| 45 | 402.0 | 185.8 | 332.0 | 181.4 | 267.0 | 177.4 | 210.0 | 174.6 | 161.0 | 166.4 | |||||||||
| EPL-BHH3-375L | 3 | 35 | 650.1 | 227.1 | 535.2 | 219.6 | 433.5 | 213.0 | 344.4 | 208.2 | 271.8 | 206.7 | 500 | Φ76 | Φ159×2 | Φ108 | Φ42 | 3400×2000×2300 | |
| 40 | 626.7 | 250.8 | 517.5 | 244.5 | 417.0 | 237.3 | 330.0 | 233.1 | 260.7 | 233.4 | |||||||||
| 45 | 603.0 | 278.7 | 498.0 | 272.1 | 400.5 | 266.1 | 315.0 | 261.9 | 241.5 | 249.6 | |||||||||
| EPL-BHH4-500L | 4 | 35 | 866.8 | 302.8 | 713.6 | 292.8 | 578.0 | 284.0 | 459.2 | 277.6 | 362.4 | 275.6 | 600 | Φ89 | Φ219×2 | Φ133 | Φ57 | 4600×2300×2500 | |
| 40 | 835.6 | 334.4 | 690.0 | 326.0 | 556.0 | 316.4 | 440.0 | 310.8 | 347.6 | 311.2 | |||||||||
| 45 | 804.0 | 371.6 | 664.0 | 362.8 | 534.0 | 354.8 | 420.0 | 349.2 | 322.0 | 332.8 | |||||||||
Screw Compressor Refrigeration Units - Medium & High Temperature
| Unit Model | Com.Model ( Hanbell) |
Com. Quantity | Condensing Temp.(℃) | Cooling Capacity Qo[Kw] | Input Power Pe[Kw] | Liquid Receiver ( L) |
Supply Pipe (mm) |
Suction Pipe (mm) |
Discharge Pipe (mm) |
Oil outlet (mm) |
Dimension(mm) (L×W×H) |
||||||||
| Evaporation Temp.(℃) | |||||||||||||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Qo | Pe | Qo | Pe | Qo | Pe | Qo | Pe | Qo | Pe | ||||||||||
| EPL-HH-30M | RC2-100D-S (30HP) | 1 | 35 | 47.4 | 18.7 | 58.1 | 19.4 | 70.6 | 20.1 | 85.2 | 20.7 | 102.1 | 21.2 | 80 | Φ28 | Φ57 | Φ45 | Φ16 | 1800×1400×2100 |
| 40 | 44.3 | 20.4 | 54.5 | 21.2 | 66.4 | 22.0 | 80.3 | 22.7 | 96.4 | 23.3 | |||||||||
| 45 | 41.1 | 22.2 | 50.7 | 23.1 | 61.9 | 24.0 | 75.1 | 24.8 | 90.4 | 25.6 | |||||||||
| EPL-BHH2-60M | RC2-100D-P (30HP) | 2 | 35 | 94.8 | 37.4 | 116.2 | 38.8 | 141.2 | 40.2 | 170.4 | 41.4 | 204.2 | 42.4 | 150 | Φ35 | Φ89 | Φ57 | Φ22 | 2400×1800×2200 |
| 40 | 88.6 | 40.8 | 109.0 | 42.4 | 132.8 | 44.0 | 160.6 | 45.4 | 192.8 | 46.6 | |||||||||
| 45 | 82.2 | 44.4 | 101.4 | 46.2 | 123.8 | 48.0 | 150.2 | 49.6 | 180.8 | 51.2 | |||||||||
| EPL-BHH3-90M | 3 | 35 | 142.2 | 56.1 | 174.3 | 58.2 | 211.8 | 60.3 | 255.6 | 62.1 | 306.3 | 63.6 | 200 | Φ42 | Φ108×2 | Φ76 | Φ28 | 3100×1800×2200 | |
| 40 | 132.9 | 61.2 | 163.5 | 63.6 | 199.2 | 66.0 | 240.9 | 68.1 | 289.2 | 69.9 | |||||||||
| 45 | 123.3 | 66.6 | 152.1 | 69.3 | 185.7 | 72.0 | 225.3 | 74.4 | 271.2 | 76.8 | |||||||||
| EPL-BHH4-120M | 4 | 35 | 189.6 | 74.8 | 232.4 | 77.6 | 282.4 | 80.4 | 340.8 | 82.8 | 408.4 | 84.8 | 250 | Φ42 | Φ133×2 | Φ76 | Φ28 | 3400×2000×2200 | |
| 40 | 177.2 | 81.6 | 218.0 | 84.8 | 265.6 | 88.0 | 321.2 | 90.8 | 385.6 | 93.2 | |||||||||
| 45 | 164.4 | 88.8 | 202.8 | 92.4 | 247.6 | 96.0 | 300.4 | 99.2 | 361.6 | 102.4 | |||||||||
| EPL-HH-40M | RC2-140D-S (40HP) | 1 | 35 | 66.5 | 27.0 | 80.1 | 27.3 | 96.0 | 27.5 | 114.8 | 28.0 | 137.0 | 29.2 | 100 | Φ28 | Φ57 | Φ45 | Φ16 | 1800×1400×2100 |
| 40 | 63.9 | 29.4 | 77.2 | 29.7 | 92.7 | 30.1 | 110.8 | 30.7 | 132.2 | 32.0 | |||||||||
| 45 | 61.3 | 32.0 | 74.4 | 32.4 | 29.5 | 32.9 | 107.1 | 33.7 | 127.8 | 35.2 | |||||||||
| EPL-BHH2-80M | RC2-140D-P (40HP) | 2 | 35 | 133.0 | 54.0 | 160.2 | 54.6 | 192.0 | 55.0 | 229.6 | 56.0 | 274.0 | 58.4 | 200 | Φ42 | Φ89 | Φ76 | Φ28 | 2400×1800×2200 |
| 40 | 127.8 | 58.8 | 154.4 | 59.4 | 185.4 | 60.2 | 221.6 | 61.4 | 264.4 | 64.0 | |||||||||
| 45 | 122.6 | 64.0 | 148.8 | 64.8 | 59.0 | 65.8 | 214.2 | 67.4 | 255.6 | 70.4 | |||||||||
| EPL-BHH3-120M | 3 | 35 | 199.5 | 81.0 | 240.3 | 81.9 | 288.0 | 82.5 | 344.4 | 84.0 | 411.0 | 87.6 | 250 | Φ42 | Φ108×2 | Φ76 | Φ28 | 3100×1800×2200 | |
| 40 | 191.7 | 88.2 | 231.6 | 89.1 | 278.1 | 90.3 | 332.4 | 92.1 | 396.6 | 96.0 | |||||||||
| 45 | 183.9 | 96.0 | 223.2 | 97.2 | 88.5 | 98.7 | 321.3 | 101.1 | 383.4 | 105.6 | |||||||||
| EPL-BHH4-160M | 4 | 35 | 266.0 | 108.0 | 320.4 | 109.2 | 384.0 | 110.0 | 459.2 | 112.0 | 548.0 | 116.8 | 300 | Φ57 | Φ133×2 | Φ89 | Φ35 | 3400×2000×2200 | |
| 40 | 255.6 | 117.6 | 308.8 | 118.8 | 370.8 | 120.4 | 443.2 | 122.8 | 528.8 | 128.0 | |||||||||
| 45 | 245.2 | 128.0 | 297.6 | 129.6 | 118.0 | 131.6 | 428.4 | 134.8 | 511.2 | 140.8 | |||||||||
| EPL-HH-50M | RC2-180D-S (50HP) | 1 | 35 | 81.8 | 33.4 | 99.6 | 33.4 | 120.1 | 33.3 | 143.7 | 33.9 | 170.3 | 35.8 | 150 | Φ28 | Φ57 | Φ45 | Φ22 | 2200×1450×2150 |
| 40 | 78.5 | 36.4 | 95.9 | 36.4 | 115.9 | 36.5 | 138.7 | 37.1 | 164.3 | 39.2 | |||||||||
| 45 | 75.4 | 39.6 | 92.5 | 39.8 | 112.0 | 39.9 | 134.0 | 40.7 | 158.7 | 43.0 | |||||||||
| EPL-BHH2-100M | RC2-180D-P (50HP) | 2 | 35 | 163.6 | 66.8 | 199.2 | 66.8 | 240.2 | 66.6 | 287.4 | 67.8 | 340.6 | 71.6 | 200 | Φ42 | Φ89 | Φ76 | Φ28 | 2400×1800×2200 |
| 40 | 157.0 | 72.8 | 191.8 | 72.8 | 231.8 | 73.0 | 277.4 | 74.2 | 328.6 | 78.4 | |||||||||
| 45 | 150.8 | 79.2 | 185.0 | 79.6 | 224.0 | 79.8 | 268.0 | 81.4 | 317.4 | 86.0 | |||||||||
| EPL-BHH3-150M | 3 | 35 | 245.4 | 100.2 | 298.8 | 100.2 | 360.3 | 99.9 | 431.1 | 101.7 | 510.9 | 107.4 | 250 | Φ42 | Φ108×2 | Φ76 | Φ28 | 3100×1800×2200 | |
| 40 | 235.5 | 109.2 | 287.7 | 109.2 | 347.7 | 109.5 | 416.1 | 111.3 | 492.9 | 117.6 | |||||||||
| 45 | 226.2 | 118.8 | 277.5 | 119.4 | 336.0 | 119.7 | 402.0 | 122.1 | 476.1 | 129.0 | |||||||||
| EPL-BHH4-200M | 4 | 35 | 327.2 | 133.6 | 398.4 | 133.6 | 480.4 | 133.2 | 574.8 | 135.6 | 681.2 | 143.2 | 400 | Φ57 | Φ133×2 | Φ89 | Φ35 | 3400×2000×2200 | |
| 40 | 314.0 | 145.6 | 383.6 | 145.6 | 463.6 | 146.0 | 554.8 | 148.4 | 657.2 | 156.8 | |||||||||
| 45 | 301.6 | 158.4 | 370.0 | 159.2 | 448.0 | 159.6 | 536.0 | 162.8 | 634.8 | 172.0 | |||||||||
| EPL-HH-60M | RC2-230D-S (60HP) | 1 | 35 | 101.9 | 41.7 | 124.3 | 43.7 | 150.2 | 45.4 | 179.7 | 46.4 | 212.7 | 46.5 | 150 | Φ35 | Φ57 | Φ45 | Φ22 | 2200×1450×2150 |
| 40 | 97.8 | 45.4 | 119.8 | 47.6 | 145.0 | 49.5 | 173.5 | 50.9 | 205.1 | 51.4 | |||||||||
| 45 | 93.9 | 49.5 | 115.4 | 51.9 | 140.1 | 54.1 | 167.7 | 55.9 | 198.1 | 56.8 | |||||||||
| EPL-BHH2-120M | RC2-230D-P (60HP) | 2 | 35 | 203.8 | 83.4 | 248.6 | 87.4 | 300.4 | 90.8 | 359.4 | 92.8 | 425.4 | 93.0 | 250 | Φ42 | Φ89 | Φ76 | Φ28 | 2400×1800×2200 |
| 40 | 195.6 | 90.8 | 239.6 | 95.2 | 290.0 | 99.0 | 347.0 | 101.8 | 410.2 | 102.8 | |||||||||
| 45 | 187.8 | 99.0 | 230.8 | 103.8 | 280.2 | 108.2 | 335.4 | 111.8 | 396.2 | 113.6 | |||||||||
| EPL-BHH3-180M | 3 | 35 | 305.7 | 125.1 | 372.9 | 131.1 | 450.6 | 136.2 | 539.1 | 139.2 | 638.1 | 139.5 | 300 | Φ57 | Φ108×2 | Φ76 | Φ28 | 3100×1800×2200 | |
| 40 | 293.4 | 136.2 | 359.4 | 142.8 | 435.0 | 148.5 | 520.5 | 152.7 | 615.3 | 154.2 | |||||||||
| 45 | 281.7 | 148.5 | 346.2 | 155.7 | 420.3 | 162.3 | 503.1 | 167.7 | 594.3 | 170.4 | |||||||||
| EPL-BHH4-240M | 4 | 35 | 407.6 | 166.8 | 497.2 | 174.8 | 600.8 | 181.6 | 718.8 | 185.6 | 850.8 | 186.0 | 400 | Φ76 | Φ133×2 | Φ76 | Φ35 | 4100×2300×2300 | |
| 40 | 391.2 | 181.6 | 479.2 | 190.4 | 580.0 | 198.0 | 694.0 | 203.6 | 820.4 | 205.6 | |||||||||
| 45 | 375.6 | 198.0 | 461.6 | 207.6 | 560.4 | 216.4 | 670.8 | 223.6 | 792.4 | 227.2 | |||||||||
| EPL-HH-70M | RC2-260D-S (70HP) | 1 | 35 | 126.0 | 49.0 | 151.1 | 49.4 | 180.7 | 49.7 | 215.9 | 50.5 | 258.4 | 52.9 | 200 | Φ42 | Φ76 | Φ54 | Φ28 | 2200×1450×2150 |
| 40 | 120.9 | 53.3 | 145.6 | 53.8 | 174.3 | 54.3 | 208.4 | 55.4 | 249.5 | 58.0 | |||||||||
| 45 | 116.1 | 58.0 | 140.3 | 58.7 | 168.4 | 59.4 | 201.5 | 60.7 | 241.1 | 63.7 | |||||||||
| EPL-BHH2-140M | RC2-260D-P (70HP) | 2 | 35 | 252.0 | 98.0 | 302.2 | 98.8 | 361.4 | 99.4 | 431.8 | 101.0 | 516.8 | 105.8 | 250 | Φ42 | Φ108 | Φ76 | Φ28 | 2400×1800×2200 |
| 40 | 241.8 | 106.6 | 291.2 | 107.6 | 348.6 | 108.6 | 416.8 | 110.8 | 499.0 | 116.0 | |||||||||
| 45 | 232.2 | 116.0 | 280.6 | 117.4 | 336.8 | 118.8 | 403.0 | 121.4 | 482.2 | 127.4 | |||||||||
| EPL-BHH3-210M | 3 | 35 | 378.0 | 147.0 | 453.3 | 148.2 | 542.1 | 149.1 | 647.7 | 151.5 | 775.2 | 158.7 | 300 | Φ57 | Φ108×2 | Φ89 | Φ35 | 3100×1800×2200 | |
| 40 | 362.7 | 159.9 | 436.8 | 161.4 | 522.9 | 162.9 | 625.2 | 166.2 | 748.5 | 174.0 | |||||||||
| 45 | 348.3 | 174.0 | 420.9 | 176.1 | 505.2 | 178.2 | 604.5 | 182.1 | 723.3 | 191.1 | |||||||||
| EPL-BHH4-280M | 4 | 35 | 504.0 | 196.0 | 604.4 | 197.6 | 722.8 | 198.8 | 863.6 | 202.0 | 1033.6 | 211.6 | 500 | Φ76 | Φ133×2 | Φ89 | Φ35 | 4100×2300×2300 | |
| 40 | 483.6 | 213.2 | 582.4 | 215.2 | 697.2 | 217.2 | 833.6 | 221.6 | 998.0 | 232.0 | |||||||||
| 45 | 464.4 | 232.0 | 561.2 | 234.8 | 673.6 | 237.6 | 806.0 | 242.8 | 964.4 | 254.8 | |||||||||
| EPL-HH-80M | RC2-310D-S (80HP) | 1 | 35 | 153.2 | 59.7 | 183.7 | 59.7 | 219.5 | 59.5 | 262.3 | 60.5 | 314.1 | 64.0 | 200 | Φ42 | Φ76 | Φ54 | Φ28 | 2200×1450×2150 |
| 40 | 147.1 | 65.0 | 176.9 | 65.1 | 211.8 | 65.1 | 253.3 | 66.3 | 303.2 | 70.1 | |||||||||
| 45 | 141.2 | 70.8 | 170.5 | 71.0 | 204.6 | 71.3 | 244.8 | 72.7 | 293.0 | 76.8 | |||||||||
| EPL-BHH2-160M | RC2-310D-P (80HP) | 2 | 35 | 306.4 | 119.4 | 367.4 | 119.4 | 439.0 | 119.0 | 524.6 | 121.0 | 628.2 | 128.0 | 300 | Φ57 | Φ108 | Φ76 | Φ28 | 2400×1800×2200 |
| 40 | 294.2 | 130.0 | 353.8 | 130.2 | 423.6 | 130.2 | 506.6 | 132.6 | 606.4 | 140.2 | |||||||||
| 45 | 282.4 | 141.6 | 341.0 | 142.0 | 409.2 | 142.6 | 489.6 | 145.4 | 586.0 | 153.6 | |||||||||
| EPL-BHH3-240M | 3 | 35 | 459.6 | 179.1 | 551.1 | 179.1 | 658.5 | 178.5 | 786.9 | 181.5 | 942.3 | 192.0 | 350 | Φ57 | Φ108×2 | Φ89 | Φ35 | 3100×1800×2200 | |
| 40 | 441.3 | 195.0 | 530.7 | 195.3 | 635.4 | 195.3 | 759.9 | 198.9 | 909.6 | 210.3 | |||||||||
| 45 | 423.6 | 212.4 | 511.5 | 213.0 | 613.8 | 213.9 | 734.4 | 218.1 | 879.0 | 230.4 | |||||||||
| EPL-BHH4-3200M | 4 | 35 | 612.8 | 238.8 | 734.8 | 238.8 | 878.0 | 238.0 | 1049.2 | 242.0 | 1256.4 | 256.0 | 500 | Φ76 | Φ133×2 | Φ108 | Φ42 | 4100×2300×2300 | |
| 40 | 588.4 | 260.0 | 707.6 | 260.4 | 847.2 | 260.4 | 1013.2 | 265.2 | 1212.8 | 280.4 | |||||||||
| 45 | 564.8 | 283.2 | 682.0 | 284.0 | 818.4 | 285.2 | 979.2 | 290.8 | 1172.0 | 307.2 | |||||||||
| EPL-HH-90M | RC2-340D-S (90HP) | 1 | 35 | 168.1 | 65.3 | 201.5 | 65.7 | 240.6 | 65.9 | 287.5 | 67.1 | 344.5 | 70.4 | 200 | Φ42 | Φ76 | Φ54 | Φ28 | 2400×1700×2150 |
| 40 | 161.4 | 71.1 | 194.0 | 71.6 | 232.2 | 72.1 | 277.6 | 73.5 | 332.5 | 77.2 | |||||||||
| 45 | 154.9 | 77.4 | 187.0 | 78.1 | 224.2 | 78.9 | 268.3 | 80.6 | 321.3 | 84.7 | |||||||||
| EPL-BHH2-180M | RC2-340D-P (90HP) | 2 | 35 | 336.2 | 130.6 | 403.0 | 131.4 | 481.2 | 131.8 | 575.0 | 134.2 | 689.0 | 140.8 | 300 | Φ57 | Φ108 | Φ76 | Φ28 | 2600×2000×2200 |
| 40 | 322.8 | 142.2 | 388.0 | 143.2 | 464.4 | 144.2 | 555.2 | 147.0 | 665.0 | 154.4 | |||||||||
| 45 | 309.8 | 154.8 | 374.0 | 156.2 | 448.4 | 157.8 | 536.6 | 161.2 | 642.6 | 169.4 | |||||||||
| EPL-BHH3-270M | 3 | 35 | 504.3 | 195.9 | 604.5 | 197.1 | 721.8 | 197.7 | 862.5 | 201.3 | 1033.5 | 211.2 | 400 | Φ57 | Φ108×2 | Φ89 | Φ35 | 3400×2000×2300 | |
| 40 | 484.2 | 213.3 | 582.0 | 214.8 | 696.6 | 216.3 | 832.8 | 220.5 | 997.5 | 231.6 | |||||||||
| 45 | 464.7 | 232.2 | 561.0 | 234.3 | 672.6 | 236.7 | 804.9 | 241.8 | 963.9 | 254.1 | |||||||||
| EPL-BHH4-360M | 4 | 35 | 672.4 | 261.2 | 806.0 | 262.8 | 962.4 | 263.6 | 1150.0 | 268.4 | 1378.0 | 281.6 | 500 | Φ76 | Φ133×2 | Φ108 | Φ42 | 4100×2300×2300 | |
| 40 | 645.6 | 284.4 | 776.0 | 286.4 | 928.8 | 288.4 | 1110.4 | 294.0 | 1330.0 | 308.8 | |||||||||
| 45 | 619.6 | 309.6 | 748.0 | 312.4 | 896.8 | 315.6 | 1073.2 | 322.4 | 1285.2 | 338.8 | |||||||||
| EPL-HH-100M | RC2-370D-S (100HP) | 1 | 35 | 178.6 | 68.3 | 216.8 | 69.0 | 261.1 | 69.4 | 312.2 | 70.7 | 370.8 | 73.9 | 250 | Φ42 | Φ89 | Φ76 | Φ28 | 2400×1700×2150 |
| 40 | 171.5 | 74.4 | 208.8 | 75.2 | 251.9 | 75.9 | 301.4 | 77.5 | 357.7 | 81.0 | |||||||||
| 45 | 164.6 | 81.0 | 201.3 | 82.0 | 243.3 | 83.1 | 291.3 | 85.0 | 345.5 | 89.0 | |||||||||
| EPL-BHH2-200M | RC2-370D-P (100HP) | 2 | 35 | 357.2 | 136.6 | 433.6 | 138.0 | 522.2 | 138.8 | 624.4 | 141.4 | 741.6 | 147.8 | 400 | Φ57 | Φ108 | Φ89 | Φ35 | 2600×2000×2200 |
| 40 | 343.0 | 148.8 | 417.6 | 150.4 | 503.8 | 151.8 | 602.8 | 155.0 | 715.4 | 162.0 | |||||||||
| 45 | 329.2 | 162.0 | 402.6 | 164.0 | 486.6 | 166.2 | 582.6 | 170.0 | 691.0 | 178.0 | |||||||||
| EPL-BHH3-300M | 3 | 35 | 535.8 | 204.9 | 650.4 | 207.0 | 783.3 | 208.2 | 936.6 | 212.1 | 1112.4 | 221.7 | 500 | Φ76 | Φ133×2 | Φ108 | Φ35 | 3400×2000×2300 | |
| 40 | 514.5 | 223.2 | 626.4 | 225.6 | 755.7 | 227.7 | 904.2 | 232.5 | 1073.1 | 243.0 | |||||||||
| 45 | 493.8 | 243.0 | 603.9 | 246.0 | 729.9 | 249.3 | 873.9 | 255.0 | 1036.5 | 267.0 | |||||||||
| EPL-BHH4-400M | 4 | 35 | 714.4 | 273.2 | 867.2 | 276.0 | 1044.4 | 277.6 | 1248.8 | 282.8 | 1483.2 | 295.6 | 600 | Φ89 | Φ159×2 | Φ133 | Φ42 | 4600×2300×2500 | |
| 40 | 686.0 | 297.6 | 835.2 | 300.8 | 1007.6 | 303.6 | 1205.6 | 310.0 | 1430.8 | 324.0 | |||||||||
| 45 | 658.4 | 324.0 | 805.2 | 328.0 | 973.2 | 332.4 | 1165.2 | 340.0 | 1382.0 | 356.0 | |||||||||
| EPL-HH-110M | RC2-410D-S (110HP) | 1 | 35 | 199.8 | 76.0 | 241.9 | 77.0 | 290.9 | 77.8 | 347.8 | 79.2 | 413.7 | 82.4 | 250 | Φ42 | Φ108 | Φ76 | Φ28 | 2400×1700×2150 |
| 40 | 191.8 | 82.7 | 233.0 | 83.9 | 280.7 | 85.0 | 335.8 | 86.8 | 399.2 | 90.5 | |||||||||
| 45 | 184.1 | 90.0 | 224.6 | 91.5 | 271.1 | 93.0 | 324.5 | 95.2 | 385.6 | 99.4 | |||||||||
| EPL-BHH2-220M | RC2-410D-P (110HP) | 2 | 35 | 399.6 | 152.0 | 483.8 | 154.0 | 581.8 | 155.6 | 695.6 | 158.4 | 827.4 | 164.8 | 400 | Φ57 | Φ133 | Φ89 | Φ35 | 2600×2000×2200 |
| 40 | 383.6 | 165.4 | 466.0 | 167.8 | 561.4 | 170.0 | 671.6 | 173.6 | 798.4 | 181.0 | |||||||||
| 45 | 368.2 | 180.0 | 449.2 | 183.0 | 542.2 | 186.0 | 649.0 | 190.4 | 771.2 | 198.8 | |||||||||
| EPL-BHH3-330M | 3 | 35 | 599.4 | 228.0 | 725.7 | 231.0 | 872.7 | 233.4 | 1043.4 | 237.6 | 1241.1 | 247.2 | 500 | Φ57 | Φ133×2 | Φ89 | Φ35 | 3400×2000×2300 | |
| 40 | 575.4 | 248.1 | 699.0 | 251.7 | 842.1 | 255.0 | 1007.4 | 260.4 | 1197.6 | 271.5 | |||||||||
| 45 | 552.3 | 270.0 | 673.8 | 274.5 | 813.3 | 279.0 | 973.5 | 285.6 | 1156.8 | 298.2 | |||||||||
| EPL-BHH4-440M | 4 | 35 | 799.2 | 304.0 | 967.6 | 308.0 | 1163.6 | 311.2 | 1391.2 | 316.8 | 1654.8 | 329.6 | 600 | Φ89 | Φ159×2 | Φ108 | Φ42 | 4600×2300×2500 | |
| 40 | 767.2 | 330.8 | 932.0 | 335.6 | 1122.8 | 340.0 | 1343.2 | 347.2 | 1596.8 | 362.0 | |||||||||
| 45 | 736.4 | 360.0 | 898.4 | 366.0 | 1084.4 | 372.0 | 1298.0 | 380.8 | 1542.4 | 397.6 | |||||||||
| EPL-HH-125M | RC2-470D-S (125HP) | 1 | 35 | 243.3 | 83.9 | 298.4 | 87.3 | 362.9 | 90.4 | 438.0 | 93.2 | 524.6 | 95.6 | 250 | Φ57 | Φ108 | Φ76 | Φ28 | 2400×1700×2150 |
| 40 | 227.9 | 91.7 | 279.9 | 95.3 | 341.2 | 98.8 | 412.6 | 102.0 | 495.3 | 104.8 | |||||||||
| 45 | 211.4 | 100.1 | 260.3 | 104.2 | 318.1 | 108.1 | 385.8 | 111.7 | 464.4 | 115.0 | |||||||||
| EPL-BHH2-250M | RC2-470D-P (125HP) | 2 | 35 | 486.6 | 167.8 | 596.8 | 174.6 | 725.8 | 180.8 | 876.0 | 186.4 | 1049.2 | 191.2 | 400 | Φ57 | Φ133 | Φ89 | Φ35 | 2600×2000×2200 |
| 40 | 455.8 | 183.4 | 559.8 | 190.6 | 682.4 | 197.6 | 825.2 | 204.0 | 990.6 | 209.6 | |||||||||
| 45 | 422.8 | 200.2 | 520.6 | 208.4 | 636.2 | 216.2 | 771.6 | 223.4 | 928.8 | 230.0 | |||||||||
| EPL-BHH3-375M | 3 | 35 | 729.9 | 251.7 | 895.2 | 261.9 | 1088.7 | 271.2 | 1314.0 | 279.6 | 1573.8 | 286.8 | 500 | Φ76 | Φ133×2 | Φ108 | Φ42 | 3400×2000×2300 | |
| 40 | 683.7 | 275.1 | 839.7 | 285.9 | 1023.6 | 296.4 | 1237.8 | 306.0 | 1485.9 | 314.4 | |||||||||
| 45 | 634.2 | 300.3 | 780.9 | 312.6 | 954.3 | 324.3 | 1157.4 | 335.1 | 1393.2 | 345.0 | |||||||||
| EPL-BHH4-500M | 4 | 35 | 973.2 | 335.6 | 1193.6 | 349.2 | 1451.6 | 361.6 | 1752.0 | 372.8 | 2098.4 | 382.4 | 600 | Φ89 | Φ159×2 | Φ133 | Φ57 | 4600×2300×2500 | |
| 40 | 911.6 | 366.8 | 1119.6 | 381.2 | 1364.8 | 395.2 | 1650.4 | 408.0 | 1981.2 | 419.2 | |||||||||
| 45 | 845.6 | 400.4 | 1041.2 | 416.8 | 1272.4 | 432.4 | 1543.2 | 446.8 | 1857.6 | 460.0 | |||||||||
| EPL-HH-140M | RC2-550D-S (140HP) | 1 | 35 | 281.3 | 96.6 | 344.9 | 100.5 | 419.5 | 104.1 | 506.3 | 107.3 | 606.4 | 110.0 | 250 | Φ57 | Φ108 | Φ76 | Φ28 | 2400×1700×2150 |
| 40 | 263.4 | 105.5 | 323.6 | 109.8 | 394.4 | 113.8 | 477.0 | 117.5 | 572.6 | 120.7 | |||||||||
| 45 | 244.3 | 115.3 | 300.9 | 119.9 | 367.7 | 124.4 | 446.0 | 128.6 | 536.9 | 132.4 | |||||||||
| EPL-BHH2-280M | RC2-550D-P (140HP) | 2 | 35 | 562.6 | 193.2 | 689.8 | 201.0 | 839.0 | 208.2 | 1012.6 | 214.6 | 1212.8 | 220.0 | 400 | Φ57 | Φ133 | Φ89 | Φ35 | 2600×2000×2200 |
| 40 | 526.8 | 211.0 | 647.2 | 219.6 | 788.8 | 227.6 | 954.0 | 235.0 | 1145.2 | 241.4 | |||||||||
| 45 | 488.6 | 230.6 | 601.8 | 239.8 | 735.4 | 248.8 | 892.0 | 257.2 | 1073.8 | 264.8 | |||||||||
| EPL-BHH3-420M | 3 | 35 | 843.9 | 289.8 | 1034.7 | 301.5 | 1258.5 | 312.3 | 1518.9 | 321.9 | 1819.2 | 330.0 | 600 | Φ89 | Φ133×2 | Φ133 | Φ57 | 3400×2000×2300 | |
| 40 | 790.2 | 316.5 | 970.8 | 329.4 | 1183.2 | 341.4 | 1431.0 | 352.5 | 1717.8 | 362.1 | |||||||||
| 45 | 732.9 | 345.9 | 902.7 | 359.7 | 1103.1 | 373.2 | 1338.0 | 385.8 | 1610.7 | 397.2 | |||||||||
| EPL-BHH4-560M | 4 | 35 | 1125.2 | 386.4 | 1379.6 | 402.0 | 1678.0 | 416.4 | 2025.2 | 429.2 | 2425.6 | 440.0 | 800 | Φ89 | Φ159×2 | Φ133 | Φ57 | 4600×2300×2500 | |
| 40 | 1053.6 | 422.0 | 1294.4 | 439.2 | 1577.6 | 455.2 | 1908.0 | 470.0 | 2290.4 | 482.8 | |||||||||
| 45 | 977.2 | 461.2 | 1203.6 | 479.6 | 1470.8 | 497.6 | 1784.0 | 514.4 | 2147.6 | 529.6 | |||||||||
| EPL-HH-160M | RC2-620D-S (160HP) |
1 | 35 | 316.3 | 108.1 | 387.8 | 112.4 | 471.7 | 116.5 | 569.3 | 120.1 | 681.9 | 123.1 | 300 | Φ42 | Φ108 | Φ89 | Φ28 | 2400×1700×2150 |
| 40 | 296.2 | 118.1 | 363.9 | 122.8 | 443.5 | 127.3 | 536.4 | 131.5 | 643.9 | 135.0 | |||||||||
| 45 | 274.8 | 129.0 | 338.4 | 134.2 | 413.5 | 139.3 | 501.5 | 144.0 | 603.7 | 148.1 | |||||||||
| EPL-BHH2-320M | RC2-620-P (160HP) | 2 | 35 | 632.6 | 216.2 | 775.6 | 224.8 | 943.4 | 233.0 | 1138.6 | 240.2 | 1363.8 | 246.2 | 500 | Φ57 | Φ133 | Φ89 | Φ35 | 2600×2000×2200 |
| 40 | 592.4 | 236.2 | 727.8 | 245.6 | 887.0 | 254.6 | 1072.8 | 263.0 | 1287.8 | 270.0 | |||||||||
| 45 | 549.6 | 258.0 | 676.8 | 268.4 | 827.0 | 278.6 | 1003.0 | 288.0 | 1207.4 | 296.2 | |||||||||
| EPL-BHH3-480M | 3 | 35 | 948.9 | 324.3 | 1163.4 | 337.2 | 1415.1 | 349.5 | 1707.9 | 360.3 | 2045.7 | 369.3 | 600 | Φ76 | Φ159×2 | Φ133 | Φ57 | 3400×2000×2300 | |
| 40 | 888.6 | 354.3 | 1091.7 | 368.4 | 1330.5 | 381.9 | 1609.2 | 394.5 | 1931.7 | 405.0 | |||||||||
| 45 | 824.4 | 387.0 | 1015.2 | 402.6 | 1240.5 | 417.9 | 1504.5 | 432.0 | 1811.1 | 444.3 | |||||||||
| EPL-BHH4-640M | 4 | 35 | 1265.2 | 432.4 | 1551.2 | 449.6 | 1886.8 | 466.0 | 2277.2 | 480.4 | 2727.6 | 492.4 | 800 | Φ89 | Φ219×2 | Φ133 | Φ57 | 4600×2300×2500 | |
| 40 | 1184.8 | 472.4 | 1455.6 | 491.2 | 1774.0 | 509.2 | 2145.6 | 526.0 | 2575.6 | 540.0 | |||||||||
| 45 | 1099.2 | 516.0 | 1353.6 | 536.8 | 1654.0 | 557.2 | 2006.0 | 576.0 | 2414.8 | 592.4 | |||||||||
Previous page
RFC
Next page
Add: Room B02, Floor 6, Building 2, Dongfang MAO Commercial Center, Gongshu District, Hangzhou, Zhejiang, China
Tel:
E-mail:
piper@aicery.com(Piper )
Aicery
Copyright © Hangzhou Aicery Imp. & Exp. Co., Ltd. All Rights Reserved Powered by www.300.cn
