Right Angle Regulating Valve — Suit for all refrigerants and ammonia
Product category:
Valve series
Product description:
Key word:
Tel:
E-mail:
Right Angle Regulating Valve — Suit for all refrigerants and ammonia
Technical Parameters:
* Design pressure: 6.4MPa
* Test Pressure: 6.0MPa
* Applicable Temperature: -46℃ ~ +150℃
* Applicable Media: R22、R507、R407C、R404A、R134a、R410A、R717、ammonia and other refrigerants and frozen oil.
|

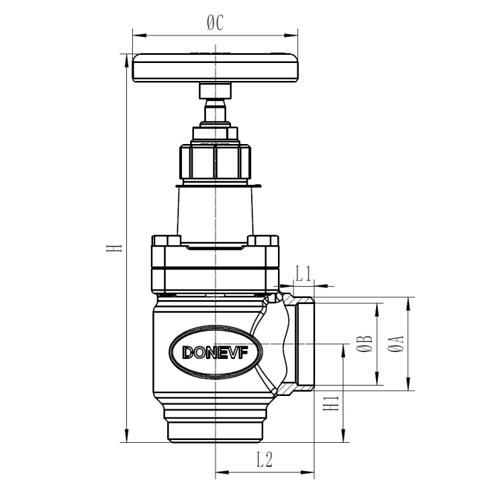

No. |
Type |
Nominal Diameter |
ΦA |
ΦB |
L1 |
L2 |
H |
H1 |
ΦC |
|
1 |
STV-20Z-00 |
DN20 |
Φ27 |
Φ19 |
12 |
45 |
185 |
45 |
Φ80 |
|
2 |
STV-25Z-00 |
DN25 |
Φ34 |
Φ25 |
12 |
45 |
185 |
45 |
Φ80 |
|
3 |
STV-32Z-00 |
DN32 |
Φ38 |
Φ32 |
12 |
50 |
195 |
50 |
Φ80 |
|
4 |
STV-40Z-00 |
DN40 |
Φ48.3 |
Φ40 |
14 |
55 |
237 |
55 |
Φ80 |
|
5 |
STV-50Z-00 |
DN50 |
Φ57 |
Φ50 |
12.5 |
60 |
236 |
60 |
Φ100 |
|
6 |
STV-65Z-00 |
DN65 |
Φ76 |
Φ65 |
15.5 |
70 |
265 |
70 |
Φ140 |
|
7 |
STV-80Z-00 |
DN80 |
Φ89 |
Φ80 |
16.5 |
90 |
314 |
90 |
Φ140 |
|
8 |
STV-100Z-00 |
DN100 |
Φ108 |
Φ100 |
16 |
106 |
355 |
106 |
Φ200 |
