Oil Temperature Regulating Valve — Suit for all refrigerants and ammonia
Product category:
Valve series
Product description:
Key word:
Tel:
E-mail:
Oil Temperature Regulating Valve — Suit for all refrigerants and ammonia
Technical Parameters:
* Design pressure: 6.4MPa
* Compressor Oil Temperature Range: 43℃、49℃、60℃、77℃
* Applicable Temperature Range: -46℃ ~ +150℃
* Applicable Media: R22、R507、R407C、R404A、R134a、R410A、R717、ammonia and other refrigerants and frozen oil.
* Application Area: The valve is used to mix up hot oil and cool oil in the lubricating oil system(LO）of the screw compressor or the centrifugal compressor in order to keep the oil temperature of compressor at a stable level.
* Connection Installation: A.Compressor B.Oil separator C.Oil condenser
|

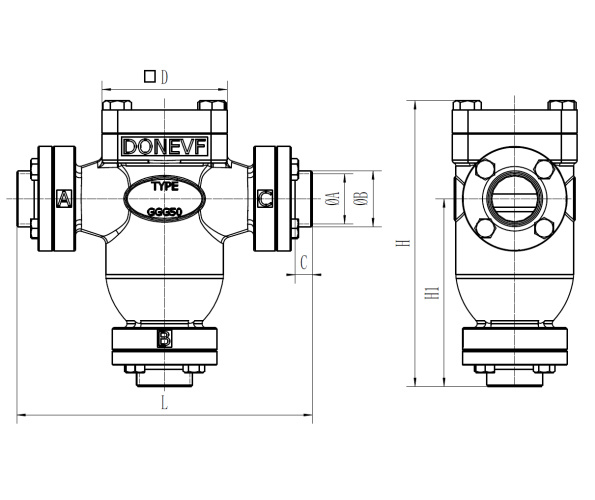

Size |
Type |
A |
B |
C |
L |
H |
H1 |
D |
|
1” |
OTV-25 -00 |
Φ28 |
Φ34 |
20 |
206 |
201.5 |
131 |
£ 87 |
|
1.25” |
OTV-32-00 |
Φ35 |
Φ39 |
20 |
206 |
201.5 |
131 |
£ 87 |
|
1.5” |
OTV-40-00 |
Φ40 |
Φ48 |
/ |
276 |
248.5 |
165 |
£ 110 |
|
2” |
OTV-50-00 |
Φ50 |
Φ57 |
/ |
276 |
248.5 |
165 |
£ 110 |
|
2.5” |
OTV-65-00 |
Φ68 |
Φ76 |
/ |
356 |
292 |
203 |
190*115 |
|
3” |
OTV-80-00 |
Φ80 |
Φ89 |
/ |
356 |
292 |
203 |
190*115 |
